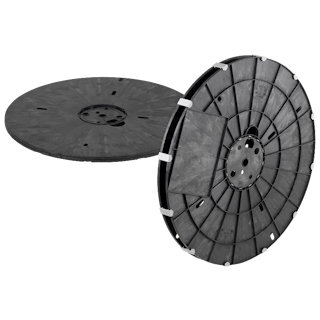

Flange BSHS 630/22,4

01 Tape reels

  • Reusable
  • Winding material : Metal strip, metal tape, Stamping parts, Tapes, Endless goods, Belted components, rubber profiles
  • Central bore Ø : 22.40 mm
  • Catalogue categorization: 01 Tape reels

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
630 160 22.4 8.5 - 380 9 2479 - 110815 2x20+2x13 56

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Flange BSHS 630/22,4 0 - 200 177 80x130x140

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
