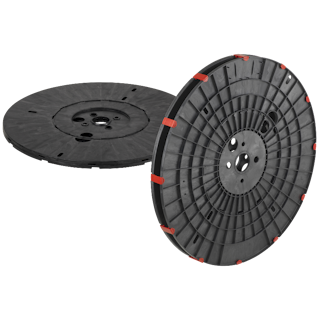

Flange BSL 630

01 Tape reels

  • Reusable
  • Winding material : Metal strip, metal tape, Stamping parts, Tapes, Endless goods, Belted components, rubber profiles
  • Material : PS   |   Material Information
  • Central bore Ø : 56 mm
  • Catalogue categorization: 01 Tape reels

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
630 315 20 - 56 8.5 - 380 12 1987 - 88841 2x20+2x13 56

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Flange BSL 630 10 11.30 64x14x66 200 231 80x130x135

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
