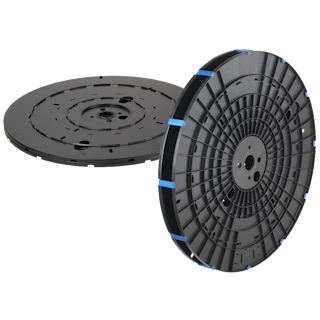

Flange BSO 800

01 Tape reels

  • Reusable
  • Winding material : Metal strip, metal tape, Stamping parts, data cable, power cables, Tapes, Endless goods, Belted components, rubber profiles
  • Material : PS   |   Material Information
  • Central bore Ø : 56 mm
  • Catalogue categorization: 01 Tape reels

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
800 600 20 - 56 10 - 160 15 2199 - 35186 2x20+2x13 56

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Flange BSO 800 10 22.20 82x17x83 60 144 80x120x105

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
