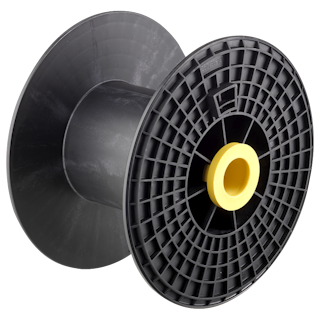

Reel B 260/36-190

11 Reels for steel cord, bare wire, stranded wire

  • Reusable
  • Winding material : Hose wire, Alloy wires, Steel wire rope
  • Standard winding volume : 6293 cm³
  • Central bore Ø : 36 mm
  • Catalogue categorization: 11 Reels for steel cord, bare wire, stranded wire

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
260 122 36 190 152 9.5 6293

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel B 260/36-190 0 - 240 330 104x124x168

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)
