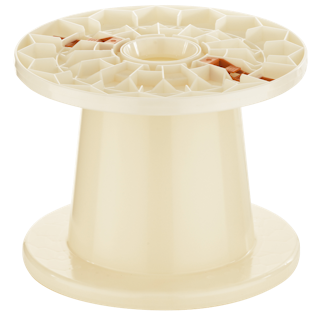

Reel Demopac® 400 x 250

16 Demopac®

  • Reusable
  • Winding material : data cable, power cables, Extruded cables, Insulated cables, optical cables, Signal cable
  • Material : ABS   |   Material Information
  • Standard winding volume : 17259 cm³
  • Central bore Ø : 80 mm
  • Catalogue categorization: 16 Demopac®

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
400 260 80 313 250 25 17259

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel Demopac® 400 x 250 0 - 152 339 80x120x189

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set

Our Certification

Our quality management system has been ISO 9001-certified since 1997, and our environmental management system has been ISO 14001-certified since 1999. In October 2012, our energy management system was certified in accordance with DIN EN ISO 50001.
