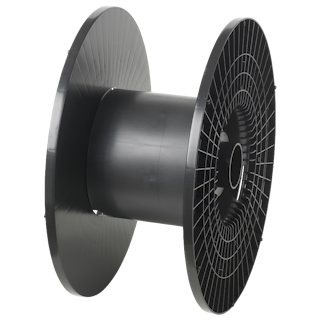

Reel Demopac® 570 with barrel
16 Demopac®
- Reusable
- Winding material : data cable, power cables, Extruded cables, Insulated cables, hose
- Material : PP | Material Information
- Standard winding volume : 49460 cm³
- Central bore Ø : 80 mm
- Catalogue categorization: 16 Demopac®
Technical data - spools
Spools
| Flange Ø | Barrel Ø | Central bore Ø | Width | Winding width | Flange thickness |
Winding- volume |
Central bore Ø tapered part |
Drive- hole/pin |
Drive- distance |
|---|---|---|---|---|---|---|---|---|---|
| d1 [mm] | d2 [mm] | d3 [mm] | L1 [mm] | L2 [mm] | S [mm] | V [cm³] | d4 [mm] | d5 [mm] | E1 [mm] |
| 570 | 250 | 80 | 280 | 240 | 20 | 49460 |
Technical drawing
Spools
