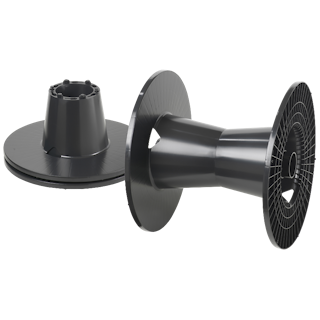

Reel Demopac® 570/80-490

16 Demopac®

  • Reusable
  • Winding material : data cable, power cables, hose
  • Material : PP   |   Material Information
  • Standard winding volume : 93400 cm³
  • Central bore Ø : 80 mm
  • Catalogue categorization: 16 Demopac®

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
570 200 80 490 450 20 93400

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel Demopac® 570/80-490 4 18 66x54x68 40 170 114x114x179

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
