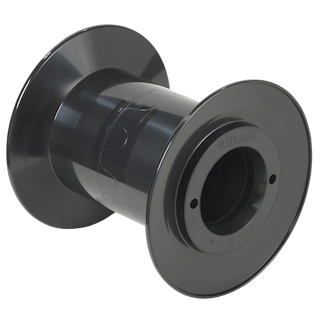

Reel FB 355/15 °

17 Spools for low alloy wires

  • Reusable
  • Winding material : Staple wire, Low carbon wires
  • Material : ABS   |   Material Information
  • Standard winding volume : 19124 cm³
  • Central bore Ø : 127 mm
  • Catalogue categorization: 17 Spools for low alloy wires

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
355 217 16 - 127 344 288 28 19124 143.5

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel FB 355/15 ° 0 - 45 137 100x120x190

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)
