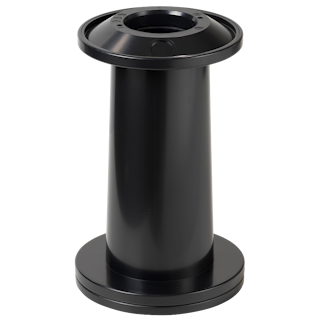

Reel GL 250/400

  • Reusable
  • Winding material : Enamelled copper wire
  • Material : ABS   |   Material Information
  • Standard winding volume : 9709 cm³
  • Central bore Ø : 100 mm
  • DIN EN 60264-3-1 Delivery spools with tapered barrel - Dimensions

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
250 140 30.6 - 100 400 335 32.5 9709

Container

Designation Outer Ø Overall height Inner Ø bottom Inner Ø top
d1 max h1 max d2 d3 h2 min
Container VB 250/400 315 500 270 280 50

Spool in container

Designation Flange Ø bottom Barrel Ø bottom Flange Ø top Barrel Ø top Overall height Winding width Distance to surface Flange thickness top
d1 d2 d3 d4 L1 L2 t2 S1
Reel GL 250/400 250 160 236 140 400 335 15 32.50

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel GL 250/400 10 24.80 66x54x67 80 192 100x120x175
Container VB 250/400 0 0 64 169 112x120x206

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Container

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set
