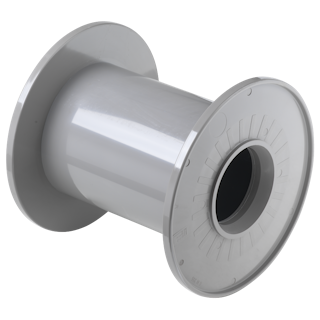

Reel GM 355/127-344

10 GM - reels, 07 General reels

  • Reusable
  • Winding material : Extruded cables, Stranded wires
  • Material : ABS   |   Material Information
  • Standard winding volume : 18467 cm³
  • Central bore Ø : 127 mm
  • Catalogue categorization: 10 GM - reels, 07 General reels
  • DIN 46395

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
355 224 16 - 127 344 50 - 310 17 2979 - 18467 143.5

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel GM 355/127-344 0 - 60 255 100x120x192

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
