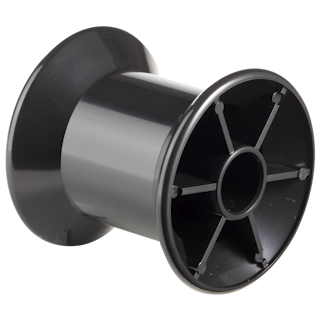

Reel HKK 76

13 Fine wire reels, 02 Spools with conical flanges

  • Reusable
  • Winding material : Fine wires, Enamelled copper wire, Alloy wires, Leonic threads
  • Material : PS   |   Material Information
  • Standard winding volume : 72 cm³
  • Central bore Ø : 16 mm
  • Catalogue categorization: 13 Fine wire reels, 02 Spools with conical flanges

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
63 43.5 16 60 34 13 72

Container

Designation Outer Ø Overall height Inner Ø bottom Inner Ø top
d1 max h1 max d2 d3 h2 min
Container VD 63 68 66.50 - - -

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel HKK 76 288 14.60 54x40x41 0 -
Container VD 63 290 6.50 70x49x33 0 0

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Container

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
