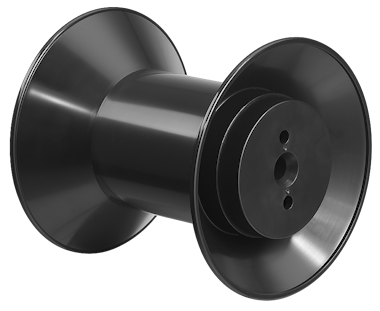

Reel HKV 250 one piece

00 New Products, 02 Spools with conical flanges, 13 Fine wire reels

Reusable
Winding material : superconductor, Fine wires, Enamelled copper wire
Material : ABS | Material Information
Standard winding volume : 6469 cm³
Central bore Ø : 22 mm
Catalogue categorization: 00 New Products, 02 Spools with conical flanges, 13 Fine wire reels
DIN EN 60264-5-1 Cylindrically barrelled delivery spools and conical flanges - dimensions
DIN EN 60264-5-2 Cylindrically barrelled delivery spools and conical flanges - spezification for reusable

Technical data - spools

Flange Ø	Barrel Ø	Central bore Ø	Width	Winding width	Flange thickness	Winding- volume	Central bore Ø tapered part	Drive- hole/pin	Drive- distance
d1 [mm]	d2 [mm]	d3 [mm]	L1 [mm]	L2 [mm]	S [mm]	V [cm³]	d4 [mm]	d5 [mm]	E1 [mm]
250	140	16 - 22	250	133	58.5	6469	34	2x13	32

Designation	Outer Ø	Overall height	Inner Ø bottom	Inner Ø top
	d1 max	h1 max	d2	d3	h2 min
Container VB 250/250	304	345	-	-	-

Designation	Cardboard box	Cardboard box weight	Cardboard box Outside Deminsions	Pallets	Pallet weight	Pallet's external dimensions
	piece	kg	cm	piece	kg	cm
Reel HKV 250 one piece	16	18	77x52x53	140	161	80x120x192
Container VB 250/250	16	29.10	89x62x100	60	110	110x120x187
Important: If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

You can download all the information as a PDF here.
