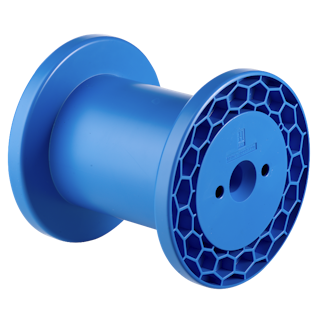

Reel K 125

24 Spools for photovoltaic ribbon/flat wire, 03 Cylindrical barrelled delivery spools IEC 60264-2-1

Reusable
Winding material : bare wires, Enamelled copper wire, Alloy wires, Resistance wire, Metal strip, metal tape
Material : PS , ABS | Material Information
Standard winding volume : 725 cm³
Central bore Ø : 16 mm
Catalogue categorization: 24 Spools for photovoltaic ribbon/flat wire, 03 Cylindrical barrelled delivery spools IEC 60264-2-1
DIN EN 60264-2-1 Cylindrically barrelled delivery spools - Dimensions
DIN EN 60264-2-2 Reusable spool with cylindrically barrelled delivery - Spezification

Technical data - spools

Flange Ø	Barrel Ø	Central bore Ø	Width	Winding width	Flange thickness	Winding- volume	Central bore Ø tapered part	Drive- hole/pin	Drive- distance
d1 [mm]	d2 [mm]	d3 [mm]	L1 [mm]	L2 [mm]	S [mm]	V [cm³]	d4 [mm]	d5 [mm]	E1 [mm]
125	80	16	125	100	12.5	725	24	2x7	20

Designation	Outer Ø	Overall height	Inner Ø bottom	Inner Ø top
	d1 max	h1 max	d2	d3	h2 min
Container VD 125	133	132	-	-	-

Designation	Cardboard box	Cardboard box weight	Cardboard box Outside Deminsions	Pallets	Pallet weight	Pallet's external dimensions
	piece	kg	cm	piece	kg	cm
Reel K 125	144	31.50	66x54x67	1078	228	80x120x190
Container VD 125	95	12.90	66x54x67	0	0
Important: If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.
