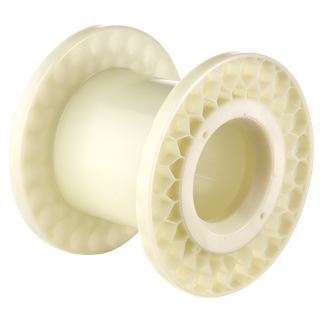

Reel K 250/102 with radius

04 Cylindrically barrelled delivery spools

  • Reusable
  • Winding material : bare wires, Stainless steel wires, Spring wire, Alloy wires
  • Standard winding volume : 4637 cm³
  • Central bore Ø : 102 mm
  • Catalogue categorization: 04 Cylindrically barrelled delivery spools
  • DIN EN 60264-2-1 Cylindrically barrelled delivery spools - Dimensions

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
250 160 102 200 160 20 4637

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel K 250/102 with radius 18 25.50 68x44x71 240 328 106x129x177

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
