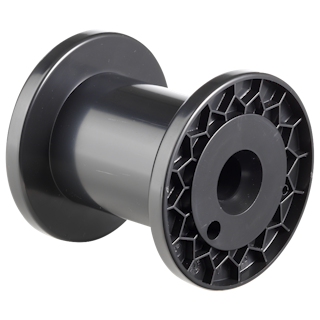

Reel K 80

03 Cylindrical barrelled delivery spools IEC 60264-2-1

  • Reusable
  • Winding material : bare wires, Enamelled copper wire
  • Material : ABS , PS   |   Material Information
  • Standard winding volume : 196 cm³
  • Central bore Ø : 16 mm
  • Catalogue categorization: 03 Cylindrical barrelled delivery spools IEC 60264-2-1
  • DIN EN 60264-2-1 Cylindrically barrelled delivery spools - Dimensions
  • DIN EN 60264-2-2 Reusable spool with cylindrically barrelled delivery - Spezification

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
80 50 16 80 64 8 196 24 1x7 20

Container

Designation Outer Ø Overall height Inner Ø bottom Inner Ø top
d1 max h1 max d2 d3 h2 min
Container VD 80 86 85 - - -

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel K 80 252 18.70 80 x 40 x 37 0 -
Container VD 80 330 11.80 77x52x53 0 0

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Container

Data sheet

You can download all the information as a PDF here.

Download (PDF)
