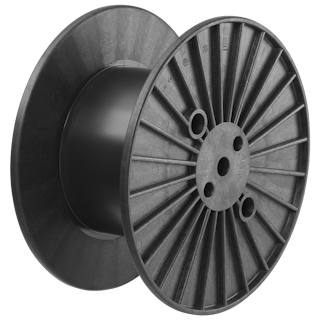

Reel LM 540/33,5-275

07 General reels, 08 LM / EM reels

  • Single-use, Reusable
  • Winding material : cable, Steel cord
  • Material : PS TSG   |   Material Information
  • Standard winding volume : 35506 cm³
  • Central bore Ø : 33.50 mm
  • Catalogue categorization: 07 General reels, 08 LM / EM reels

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
540 315 33.5 275 50 - 425 20 7554 - 64213 2x35+2x25 115

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel LM 540/33,5-275 0 - 35 208 120x120x210

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
