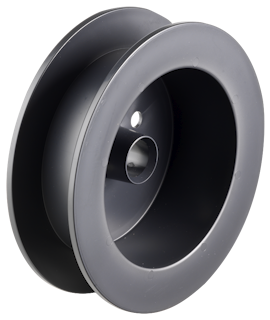

Reel MA 125/16-37

22 Spools for fishing line/monofilaments, 11 Reels for steel cord, bare wire, stranded wire

  • Winding material : fishing line
  • Material : PS   |   Material Information
  • Standard winding volume : 177 cm³
  • Central bore Ø : 16 mm
  • Catalogue categorization: 22 Spools for fishing line/monofilaments, 11 Reels for steel cord, bare wire, stranded wire

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
125 90 16 37 30 3.5 177

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel MA 125/16-37 210 18.40 80x40x37 0 -

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)
