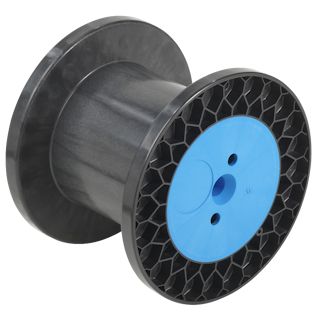

Reel MK 250-R

04 Cylindrically barrelled delivery spools

  • Reusable
  • Winding material : monofilaments
  • Standard winding volume : 4637 cm³
  • Central bore Ø : 22 mm
  • Catalogue categorization: 04 Cylindrically barrelled delivery spools

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
250 160 22 200 160 20 4637 34 2x13 32

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel MK 250-R 18 26 68x44x71 240 338 106x129x177

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.
