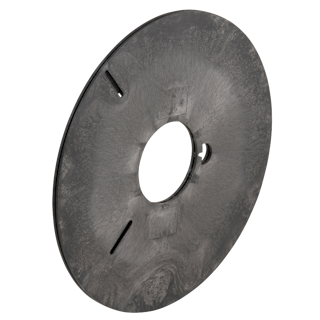

Reel PC 372/101-9,9

24 Spools for photovoltaic ribbon/flat wire

  • Reusable
  • Winding material : Metal strip, metal tape, Tapes, PV-Ribbons
  • Material : PS   |   Material Information
  • Standard winding volume : 262 cm³
  • Central bore Ø : 101 mm
  • Catalogue categorization: 24 Spools for photovoltaic ribbon/flat wire

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
372 120 101 9.9 2.7 3.5 262

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel PC 372/101-9,9 35 23.70 39x40x39 0 -

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
