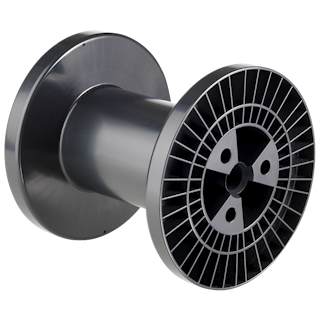

Reel R 200-E

04 Cylindrically barrelled delivery spools

  • Reusable
  • Winding material : monofilaments
  • Standard winding volume : 3769 cm³
  • Central bore Ø : 22 mm
  • Catalogue categorization: 04 Cylindrically barrelled delivery spools
  • DIN EN 60264-2-1 Cylindrically barrelled delivery spools - Dimensions

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
200 100 22 200 160 20 3769 34 2x13 32

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel R 200-E 0 - 420 250 100x120x195

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
