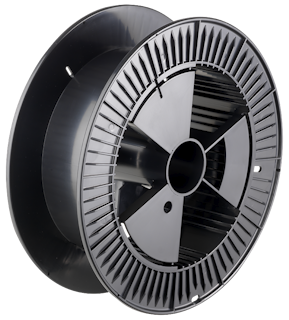

Reel SD 300 K AW

06 Welding wire reels

  • Reusable
  • Winding material : Metal strip, metal tape, Profile wire, square wire, Welding wire, Resistance wire
  • Material : ABS , PS , PS TSG   |   Material Information
  • Standard winding volume : 3200 cm³
  • Central bore Ø : 51.7 mm
  • Catalogue categorization: 06 Welding wire reels
  • DIN EN ISO 544

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
300 212 51.7 103 89.9 6.5 3200 1x11 44.5

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel SD 300 K AW 40 26 80,5x61,5x76,5 360 235 110x130x205

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)
