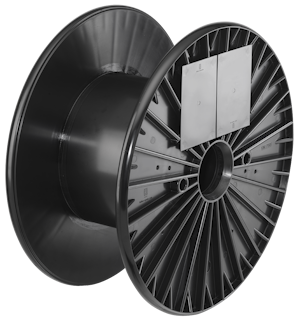

Reel VM 750/127-630 V VR
00 New Products, 07 General reels, 09 VM - reels
- Reusable
- Winding material : data cable, power cables, Extruded cables, Conductor, Metal strip, metal tape, Alloy wires, Stranded wires
- Material : ABS | Material Information
- Standard winding volume : 177028 cm³
- Central bore Ø : 127 mm
- Catalogue categorization: 00 New Products, 07 General reels, 09 VM - reels
- DIN 46395
Technical data - spools
Spools
| Flange Ø | Barrel Ø | Central bore Ø | Width | Winding width | Flange thickness |
Winding- volume |
Central bore Ø tapered part |
Drive- hole/pin |
Drive- distance |
|---|---|---|---|---|---|---|---|---|---|
| d1 [mm] | d2 [mm] | d3 [mm] | L1 [mm] | L2 [mm] | S [mm] | V [cm³] | d4 [mm] | d5 [mm] | E1 [mm] |
| 750 | 400 | 16 - 127 | 630 | 50 - 560 | 35 | 15806 - 177028 | 143.5 | 2 x26 | 140 |
