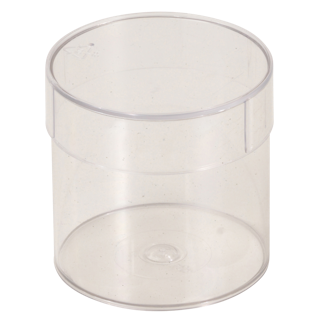

Container VD 63

03 Cylindrical barrelled delivery spools IEC 60264-2-1

  • Single-use, Reusable
  • Winding material : Enamelled copper wire
  • Material : PS   |   Material Information

Technical Data Container

Designation Outer Ø Overall height Inner Ø bottom Inner Ø top
d1 max h1 max d2 d3 h2 min
Container VD 63 68 66.50 - - -

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Container VD 63 290 6.50 70x49x33 0 0

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Spools

Designation Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
Reel 63/37-E
Reel 63/37-E Reel 63/37-E 		63 37 11 63 49 7 100 15
Reel HK 76/16 - 60
Reel HK 76/16 - 60 Reel HK 76/16 - 60 		63 43.6 16 60 51.2 4.2 83
Reel HKK 76
Reel HKK 76 Reel HKK 76 		63 43.5 16 60 34 13 72
Reel K 63
Reel K 63 Reel K 63 		63 40 11 63 49 7 91 15 1x5 14

Technical drawing

Container

Data sheet

You can download all the information as a PDF here.

Download (PDF)
