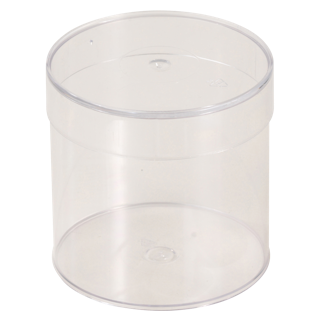

Container VD 80

03 Cylindrical barrelled delivery spools IEC 60264-2-1

  • Single-use, Reusable
  • Winding material : Enamelled copper wire
  • Material : PS   |   Material Information

Technical Data Container

Designation Outer Ø Overall height Inner Ø bottom Inner Ø top
d1 max h1 max d2 d3 h2 min
Container VD 80 86 85 - - -

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Container VD 80 330 11.80 77x52x53 0 0

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Spools

Designation Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
Reel HK 76
Reel HK 76 Reel HK 76 		63.4 44 16 86.3 76 5 121
Reel HK 76/45
Reel HK 76/45 Reel HK 76/45 		63.5 44.4 8 - 16 86.3 60 13 113
Reel 80 E
Reel 80 E Reel 80 E 		80 50 16 80 64 8 196 24 2x7 20
Reel K 80
Reel K 80 Reel K 80 		80 50 16 80 64 8 196 24 1x7 20

Technical drawing

Container

Data sheet
