Reel 400/630

05 Spools with tapered barrel

  • Reusable
  • Winding material : Enamelled copper wire
  • Material : ABS   |   Material Information
  • Standard winding volume : 40585 cm³
  • Central bore Ø : 100 mm
  • Catalogue categorization: 05 Spools with tapered barrel
  • DIN EN 60264-3-1 Delivery spools with tapered barrel - Dimensions
  • DIN EN 60264-3-2 reusable spools with tapered barrel - Spezification

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume
Central bore Ø
tapered part
Drive-
hole/pin
Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
400 224 100 630 530 50 40585 106 2x16 62.5

Container

Designation Outer Ø Overall height Inner Ø bottom Inner Ø top
d1 max h1 max d2 d3 h2 min
Container VB 400/630 500 800 428 450 80

Spool in container

Designation Flange Ø bottom Barrel Ø bottom Flange Ø top Barrel Ø top Overall height Winding width Distance to surface Flange thickness top
d1 d2 d3 d4 L1 L2 t2 S1
Reel 400/630 400 250 375 224 630 530 30 50

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel 400/630 2 16.5 68x44x71 27 219 110x120x210
Container VB 400/630 1 11.0 77x52x53 10 102 110x120x165

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

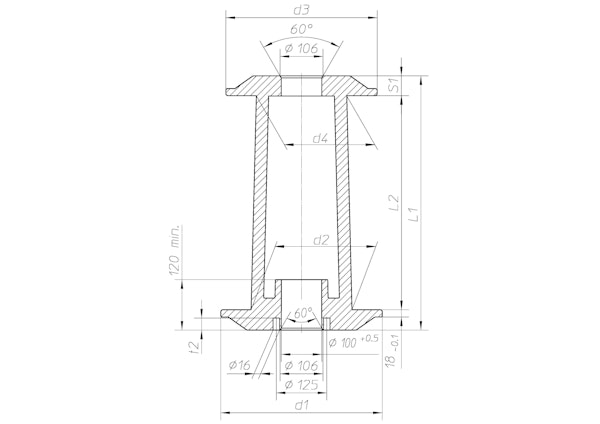

Technical drawing

Spools

Container

Data sheet

You can download all the information as a PDF here.
