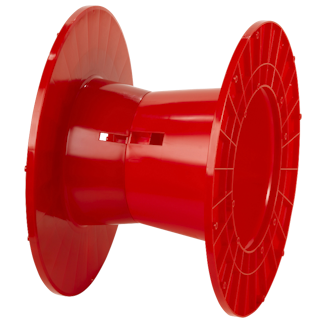

Reel Demopac® W 394/128-260

16 Demopac®, 14 Reels for tapes, tubes and cables

  • Reusable
  • Winding material : hose, data cable, power cables, Extruded cables
  • Material : PE   |   Material Information
  • Standard winding volume : 20606 cm³
  • Central bore Ø : 128 mm
  • Catalogue categorization: 16 Demopac®, 14 Reels for tapes, tubes and cables

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume
Central bore Ø
tapered part
Drive-
hole/pin
Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
394 178 128 260 228 12.5 20606

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)
