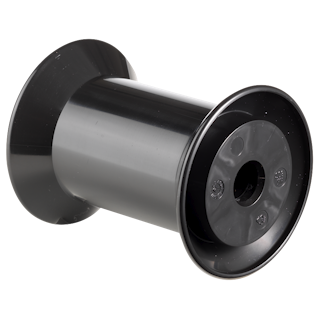

Reel HK 80 S
13 Fine wire reels, 02 Spools with conical flanges
- Reusable
- Winding material : Bond wires, Stainless steel wires, Fine wires, Enamelled copper wire, Weaving wire
- Material : PS , ABS | Material Information
- Standard winding volume : 220 cm³
- Central bore Ø : 16 mm
- Catalogue categorization: 13 Fine wire reels, 02 Spools with conical flanges
Technical data - spools
Spools
Flange Ø | Barrel Ø | Central bore Ø | Width | Winding width | Flange thickness |
Winding- volume |
Central bore Ø tapered part |
Drive- hole/pin |
Drive- distance |
---|---|---|---|---|---|---|---|---|---|
d1 [mm] | d2 [mm] | d3 [mm] | L1 [mm] | L2 [mm] | S [mm] | V [cm³] | d4 [mm] | d5 [mm] | E1 [mm] |
80 | 55 | 8 - 16 | 100 | 69.5 | 15 | 220 |
Container
Designation | Outer Ø | Overall height | Inner Ø bottom | Inner Ø top | |
---|---|---|---|---|---|
d1 max | h1 max | d2 | d3 | h2 min | |
Container VD 100 | 107 | 105.5 | - | - | - |
Packaging
Designation | Cardboard box | Cardboard box weight | Cardboard box Outside Deminsions | Pallets | Pallet weight | Pallet's external dimensions |
---|---|---|---|---|---|---|
piece | kg | cm | piece | kg | cm | |
Reel HK 80 S | 180 | 15.8 | 65x45x35 | 0 | - | |
Container VD 100 | 144 | 9.3 | 68x44x74 | 0 | 0 | |
Important: |
Technical drawing
Spools
![](https://images.hafner-spools.com/zeichnungen/Prospekt_02.jpg?fit=max&h=600&ixlib=php-2.1.1&q=80&w=600&s=a03f020fdc47882ccb4c3224f8ce71c6)
Container
![](https://images.hafner-spools.com/zeichnungen/VD_Dosen.jpg?fit=max&h=600&ixlib=php-2.1.1&q=80&w=600&s=0957474d99567a41b38f1dc3e28cedaa)
