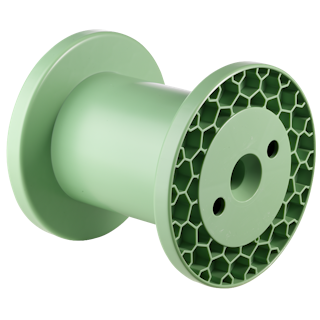

Reel K 160

03 Cylindrical barrelled delivery spools IEC 60264-2-1, 24 Spools for photovoltaic ribbon/flat wire

  • Reusable
  • Winding material : Metal strip, metal tape, bare wires, Stainless steel wires, EDM WIRE, Enamelled copper wire, Alloy wires, Stranded wires, Resistance wire
  • Material : ABS , PS   |   Material Information
  • Standard winding volume : 1568 cm³
  • Central bore Ø : 22 mm
  • Catalogue categorization: 03 Cylindrical barrelled delivery spools IEC 60264-2-1, 24 Spools for photovoltaic ribbon/flat wire
  • DIN EN 60264-2-1 Cylindrically barrelled delivery spools - Dimensions
  • DIN EN 60264-2-2 Reusable spool with cylindrically barrelled delivery - Spezification

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume
Central bore Ø
tapered part
Drive-
hole/pin
Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
160 100 16 - 22 160 128 16 1568 34 2x13 32

Container

Designation Outer Ø Overall height Inner Ø bottom Inner Ø top
d1 max h1 max d2 d3 h2 min
Container VD 160 169 167 - - -

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel K 160 63 23.9 79,4 x 54,4 x 51,8 540 204 85x120x185
Container VD 160 42 11.0 80x54x52 0 0

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Container

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
