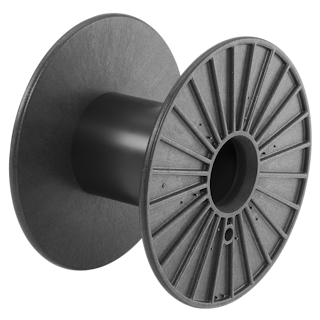

Reel VM 500/127-325

07 General reels, 09 VM - reels

  • Reusable
  • Winding material : data cable, power cables, Extruded cables, chains
  • Material : ABS   |   Material Information
  • Standard winding volume : 47006 cm³
  • Central bore Ø : 127 mm
  • Catalogue categorization: 07 General reels, 09 VM - reels
  • DIN 46395

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume
Central bore Ø
tapered part
Drive-
hole/pin
Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
500 200 16 - 127 325 50 - 285 20 8247 - 47006 143.5 1 x 24 112

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel VM 500/127-325 0 - 30 196 100x120x183

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set

Our Certification

Our quality management system has been ISO 9001-certified since 1997, and our environmental management system has been ISO 14001-certified since 1999. In October 2012, our energy management system was certified in accordance with DIN EN ISO 50001.
