Technical request

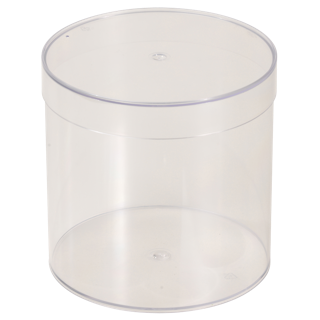

Container VD 160

03 Cylindrical barrelled delivery spools IEC 60264-2-1

Single-use, Reusable
Winding material : Enamelled copper wire
Material : PS | Material Information

Technical Data Container

Designation	Outer Ø	Overall height	Inner Ø bottom	Inner Ø top
	d1 max	h1 max	d2	d3	h2 min
Container VD 160	169	167	-	-	-

Packaging

Designation	Cardboard box	Cardboard box weight	Cardboard box Outside Deminsions	Pallets	Pallet weight	Pallet's external dimensions
	piece	kg	cm	piece	kg	cm
Container VD 160	42	11.00	80x54x52	0	0
Important: If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Spools

Designation	Flange Ø	Barrel Ø	Central bore Ø	Width	Winding width	Flange thickness	Winding- volume	Central bore Ø tapered part	Drive- hole/pin	Drive- distance
	d1 [mm]	d2 [mm]	d3 [mm]	L1 [mm]	L2 [mm]	S [mm]	V [cm³]	d4 [mm]	d5 [mm]	E1 [mm]
Reel 160 S	160	100	16 - 22	160	128	16	1568	34	2x13	32
Reel 160-E	160	100	16 - 22	160	128	16	1568	34	2x13	32
Reel EPA 160-E	160	100	22	160	128	16	1568	34	2x13	32
Reel HKV 160	160	90	16 - 22	160	85	37.5	1675	34	2x13	32
Reel K 160	160	100	16 - 22	160	128	16	1568	34	2x13	32
Reel K 160-R	160	100	22.2	160	128	16	1568
Reel K 160/72	160	100	72	160	128	16	1568

Technical drawing

Container

Data sheet

You can download all the information as a PDF here.

Download (PDF)
