26 Tape reels with smooth flange

Reels for collated tapes, stamped parts, and extruded products with smooth flange outer surfaces enable easy cleaning for applications in clean rooms and controlled areas

Designation Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume
Central bore Ø
tapered part
Drive-
hole/pin
Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
Reel FLI 385/22-30 385 200 22 30 10 - 260 5 850 - 22100
Reel FLI 500/40-260 500 200 40 260 10 - 260 5 1649 - 42883
Reel FLI 588/22-30 588 200 22 30 10 - 260 5 2401 - 62434
Reel BSHG 630/22,4-34 630 160 22.4 34 26 4 7580

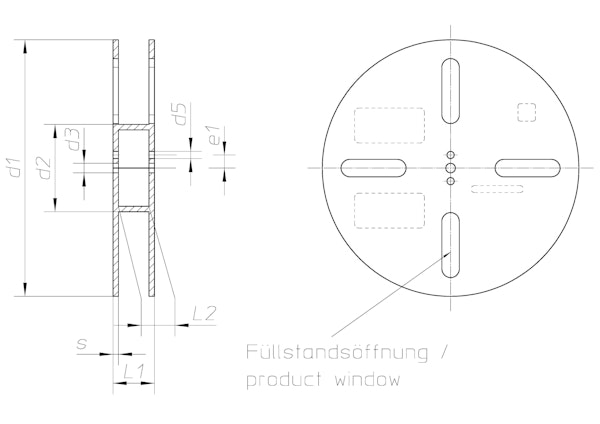

Technical drawing
