18 Braiding reels

Process reels for braiding wire

TOLERANCES

All dimensions, weights and loads stated are approximate values; tolerances and deviations which are customary for the industry remain reserved.

Material

POM = polyacetal
ABS = acrylonitrile-butadiene-styrene
PA6 = polyamide
Other materials and colours on request.
Further details regarding material can be found in our material data sheets.



Material Information
Designation Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume
Central bore Ø
tapered part
Drive-
hole/pin
Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
Reel  WA 65/16-80
Reel  WA 65/16-80 Reel WA 65/16-80
65.8 35.3 16.8 82.2 71.2 5.5 172
Reel WA 65/16-82 S
Reel WA 65/16-82 S Reel WA 65/16-82 S
67 34.5 16.5 81.8 69.2 179
Reel WA 65/16-117 S
Reel WA 65/16-117 S Reel WA 65/16-117 S
67 34.5 16.5 116.6 104 269
Reel  SPI 75/10-100 S
Reel  SPI 75/10-100 S Reel SPI 75/10-100 S
75 23 10 100 70 280
Reel  SPI 80/10-100 S
Reel  SPI 80/10-100 S Reel SPI 80/10-100 S
80 23 10 100 80 368
Reel WA 80/16-86 S
Reel WA 80/16-86 S Reel WA 80/16-86 S
80 34.5 16.5 85 70.5 288

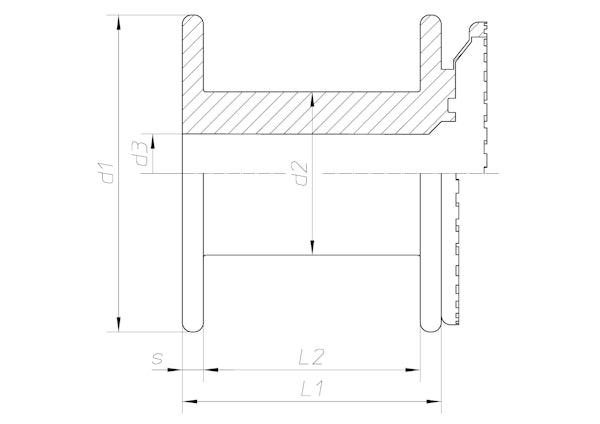

Technical drawing
