14 Reels for tapes, tubes and cables

Häfner spools are optimized for logistics and particularly suitable for the cost-effective transport of cables. Disposable as well as multiple use.

TOLERANCES

All  measures, weights and loads as indicated in this brochure are approximate figures.
Tolerances and deviations as customary in this trade reserved.

Material

PS = high impact polystyrene
ABS = Acrylonitrile Butadiene Styrene
PE = Polyethylene
PP = Polypropylene
TSG = with foam structure
Other materials on request. Further information is given in our material specification.

Material Information
Designation Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume
Central bore Ø
tapered part
Drive-
hole/pin
Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
Reel MP 250 250 60 20 30 1 - 15 4 46 - 694
Reel 270/21-158 270 85 21 158 152 3 7840
Reel L 315/36-212 315 125 36 212 200 6 13131
Flange 350/86-18,5 350 150 86 18.5 7.5 4 589
Reel LE 355 355 180 36 167 142 12.5 10441
Reel GH 380 380 220 26 120 110 5 8293
Reel Demopac® W 394/128-198 394 178 128 198 166 12.5 15474
Reel Demopac® W 394/128-260 394 178 128 260 228 12.5 20606
Reel Demopac® W 394/128-322 394 178 128 322 290 12.5 26338
Flange 450/86-18,5 450 150 86 18.5 7.5 4 1069
Reel 450/74-55 450 150 74 55 6.2 4 875
Reel LD 600/127-380 600 310 127 380 50 - 355 12.5 10363 - 73580 143.5

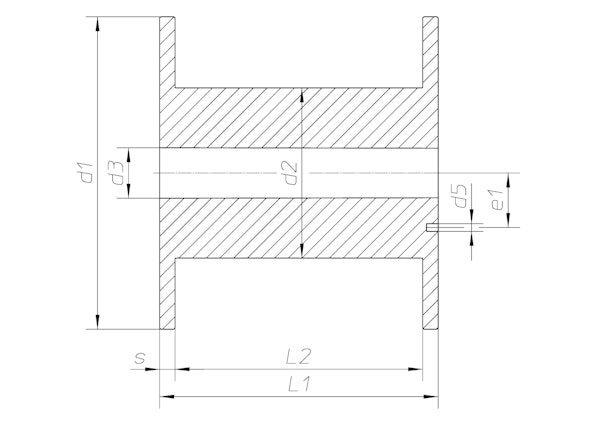

Technical drawing

Spools
