03 Cylindrical barrelled delivery spools IEC 60264-2-1

The lighter reels are particularly suitable for export shipments. The heavy reels are specially designed for fine wires, for wire drawing and for dispatch of bare wire. DIN EN 60264-2-1.

TEST DIFFERENCES

The lighter reels are particularly suitable for export shipments. The heavy reels are specially designed for fine wires, for wire drawing and for dispatch of bare wire.
They are also available with different bore diameters, see leaflet no. 4. Other materials on request.

ATTENTION

Do not store in direct sunlight. The reels 125 to 710 are preferably packed on pallets with shrink wrapping. All reels can also be packed into corrugated cardbord car-
tons, which in turn can be loaded on pallets with shrink wrapping. Reels can also be sent in 20 ft. or 40 ft. containers which are suitable for shipments overseas. Please enquire about container capacity and possibilities of combinations.

SPECIALS

Some reels can be supplied with different bore diameters (see special leaflet) or other special versions are available, e. g. with additional holes or a slot in the barrel for the wire or tape start. If details are not shown in our leaflets please enquire. Nearly all types of reels can be provided with company names.

TOLERANCE

All measures, weights and loads as indicated in this brochure are approximate figures.Tolerances and deviations as customary in this trade reserved.

Material

The materials available are shown in the table:
PS  = high impact polystyrene
ABS = Acrylnitrile-Butadiene-Styrene
PA6  = Polyamide
TSG  = foam structured material.

Further information is given in our material specifications, which also show the available colours.
Standard colour for PS is green, for PA and ABS anthracite.

Material Information
Designation Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume
Central bore Ø
tapered part
Drive-
hole/pin
Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
Reel K 40 40 25 11 50 37.5 6 29 15
Reel K 50 50 32 11 50 38 6 44 15
Reel K 63 63 40 11 63 49 7 91 15
Reel K 80 80 50 16 80 64 8 196 24 2x7 20
Reel 100-E 100 63 16 100 80 10 379 24 2x7 20
Reel K 100 100 63 16 100 80 10 379 24 2x7 20
Reel 125-E 125 80 16 125 100 12.5 725 24 2x7 20
Reel K 125 125 80 16 125 100 12.5 725 24 2x7 20
Reel 160 S 160 100 16 - 22 160 128 16 1568 34 2x13 32
Reel 160-E 160 100 16 - 22 160 128 16 1568 34 2x13 32
Reel K 160 160 100 16 - 22 160 128 16 1568 34 2x13 32
Reel K 160-R 160 100 22.2 160 128 16 1568
Reel 200 E 200 125 16 - 22 200 160 20 3063 34 2x13 32
Reel 200 S 200 125 22 200 160 20 3063 34 2x13 32
Reel K 200 200 125 16 - 22 200 160 20 3063 34 2x13 32
Reel K 200-R 200 125 22.2 200 160 20 3063
Reel SP 200 200 125 22 200 160 20 3063 34 2x13 32
Reel 250 E 250 160 16 - 22 200 160 20 4637 34 2x13 32
Reel 250/36 E 250 160 30 - 36 200 160 20 4637
Reel DWF 250 250 160 16 - 22 200 160 20 4637 34 2x13 32
Reel K 250 250 160 16 - 22 200 160 20 4637 34 2x13 32
Reel KN 250-R 250 160 22.2 200 160 20 4637
Reel SP 250 250 160 22 200 160 20 4637 34 2x13 32
Reel DWF 355 355 224 36 200 160 20 9531
Reel K 355 355 224 36 200 160 20 9531
Reel DWF 500 500 315 36 250 180 35 21315
Reel K 500 500 315 36 250 180 35 21315
Reel VM 710/51-250 710 500 51 250 180 35 35922
Designation Outer Ø Overall height Inner Ø bottom Inner Ø top
d1 maxh1 maxd2d3h2 min
Container VD 40 4452---
Container VD 50 5554---
Container VD 63 6866.5---
Container VD 80 8685---
Container VD 100 107105.5---
Container VD 125 133132---
Container VD 160 169167---

Technical drawing

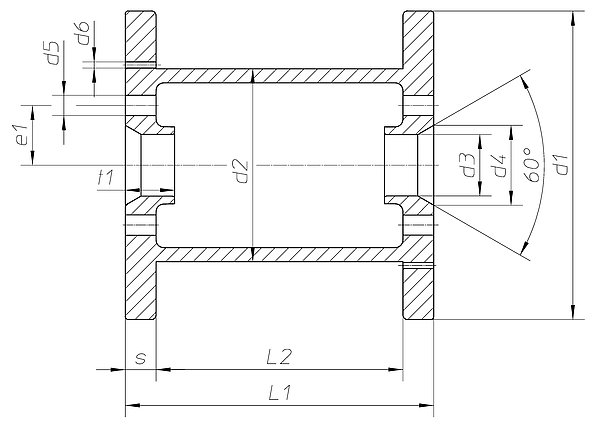

Spools

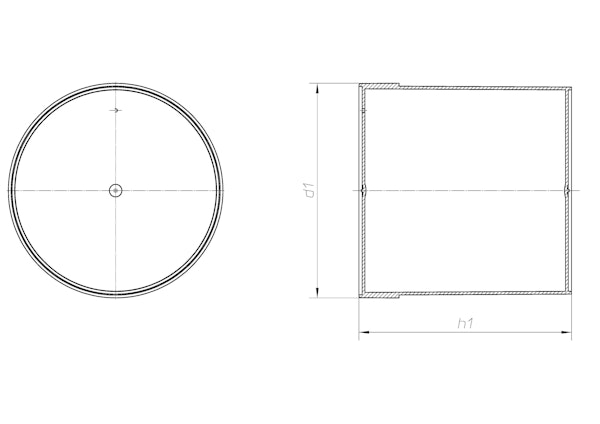

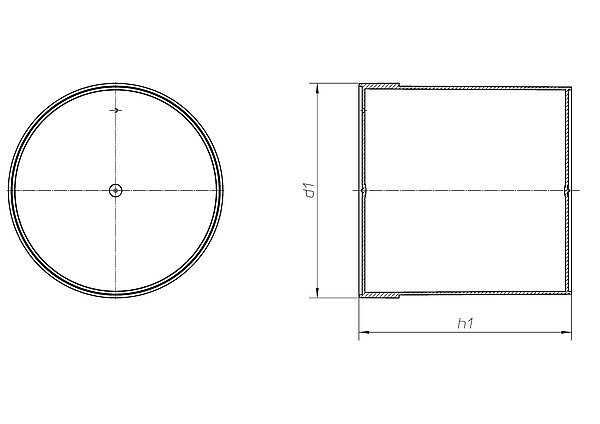

Container
